LED Commercial Lighting Fixtures

1. Core Features

High efficiency and energy saving:

Compared with traditional high-pressure sodium lamps or metal halide lamps, LED street lamps reduce energy consumption by 50%~70%, and the light efficiency can reach 100~200lm/W, significantly reducing electricity bills.

Long life:

The service life is usually 50,000~100,000 hours (about 10~15 years), reducing the cost of frequent replacement and maintenance.

Environmentally friendly and pollution-free:

It does not contain harmful substances such as mercury and lead, no ultraviolet/infrared radiation, and complies with RoHS standards.

Good color rendering:

The color rendering index (CRI) is ≥70, the light is closer to natural light, and the visual clarity at night is improved.

Intelligent control:

Supports dimming, timer switch, remote monitoring (such as with NB-IoT, LoRa and other Internet of Things technologies), and adapts to the needs of smart cities.

2. Main structural components

LED light source:

Use high-brightness LED chips (such as COB or SMD packaging), single or multiple combinations to ensure uniform lighting.

Cooling system:

Aluminum alloy heat sink fins or heat pipe design, effectively reduce junction temperature and extend life.

Optical lens:

Secondary light distribution design (such as bat wing light distribution) to avoid glare and improve road illumination uniformity.

Drive power supply:

Constant current drive, wide voltage input (AC85V-265V), with overvoltage, overcurrent and lightning protection.

Shell material:

Die-cast aluminum or high-strength polycarbonate (PC), protection level IP65 or above, corrosion-resistant, dustproof and waterproof.

3. Common types

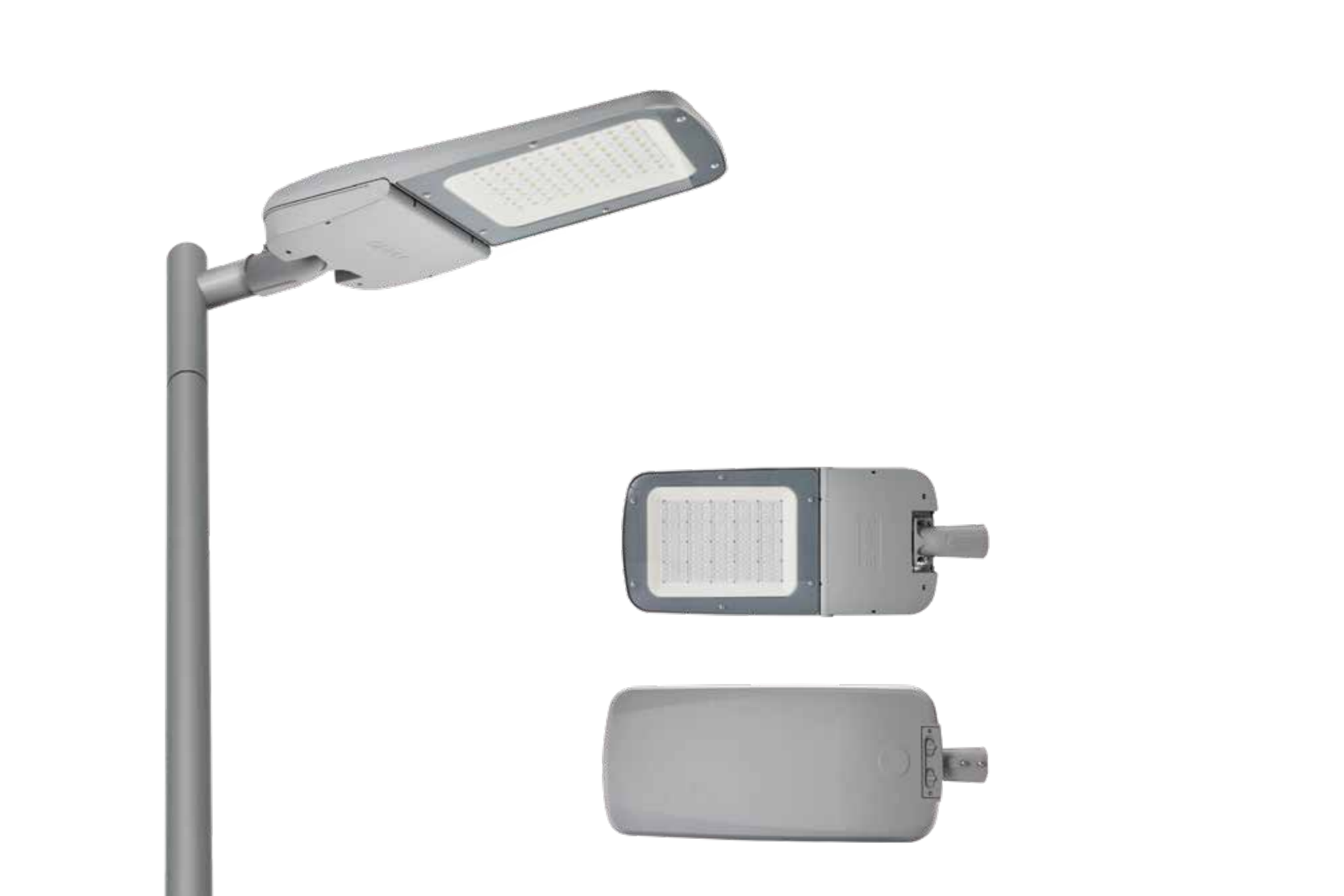

Conventional LED street lights:

Power 30W~400W, suitable for main roads, branches, etc., color temperature optional 3000K (warm white) ~ 6000K (white).

Solar LED street lights:

Integrated photovoltaic panels + batteries, off-grid power supply, suitable for areas without power grid.

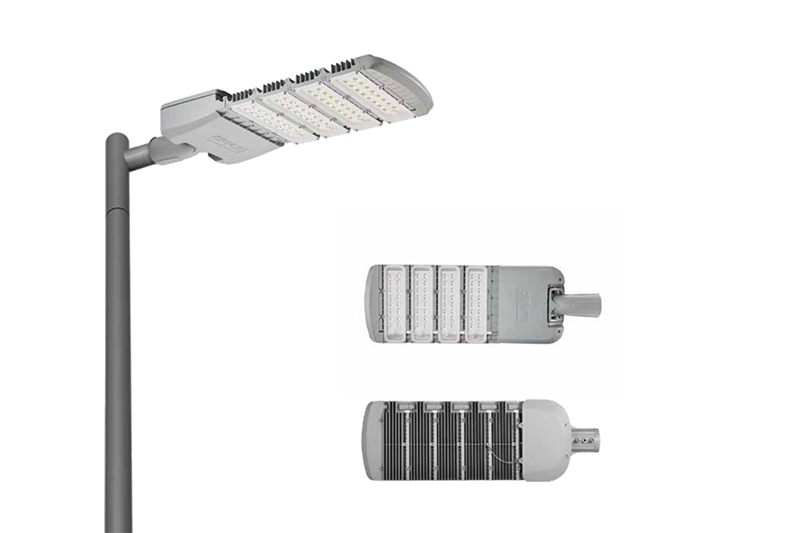

Modular street lights:

Modular design, easy to repair or upgrade locally, reducing maintenance costs.

Smart street lights:

Integrate environmental sensors, cameras, Wi-Fi, etc. to achieve multi-functional smart management.
